| Category: | Electrical - Other |
|---|
| Equipment Number: | MPP1 |
|---|
| Manufacturer: | OTHER |
|---|
| Model: | Complete 5.6 Megawatt Diesel Power Generating Plant |
|---|
| Quantity: | 1 |
|---|

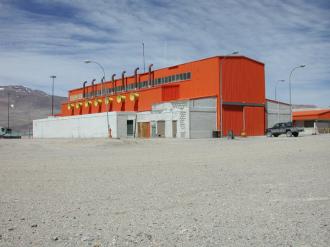

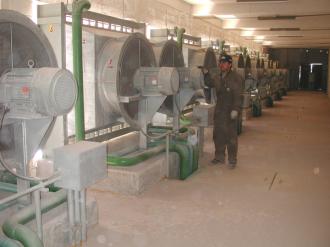

| Details: | "(7) Diesel powered generators, fuel tanks, motor control centre/switch gear, fan cooled radiators, transformers, and building * See Special Notes below" |
|---|

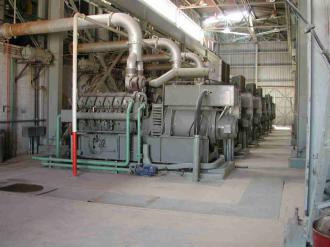

| Diesel Engines: | "(6) Deutz T B D 604 BV 12, 12 cylinders/4.43 lt each" |
|---|
| Generators: | "(7) Leroy Somer generators, 800 kW 1000 kVA each (sea level rating), 3 phase, 50 Hz, 6300 V, power factor 0.8, 1500 rpm, built in 1988, approximate hours for each generator = 20,000 hours, Type AT 500LB 41-4P" |
|---|

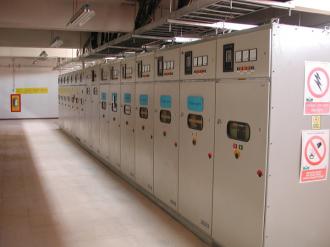

| MCC/Switchgear: | KUSHE |
|---|
| Special Notes: | The power plant is located in Northern Chile and has been disassembled and removed from site. It is presently being stored in Copiapo. One additional diesel engine must be purchased to make the seventh generator operable. |
|---|
| Transformers: | "(2) 1500 kVA transformers 6.3 kV/400V, (2) 500 kVA transformers 6.3 kV/400V, (6) 315 kVA transformers 6.3 kV/400V" |
|---|
