| Category: | Electrical - Substations |
|---|
| Equipment Number: | TRANS8 |
|---|
| Manufacturer: | FERRANTI PACKARD |
|---|
| Model: | 12000/16000 KVA Transformer |
|---|
| Quantity: | 1 |
|---|

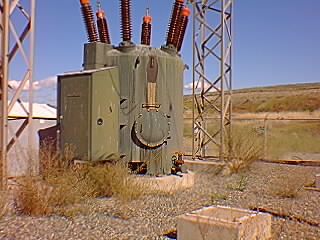

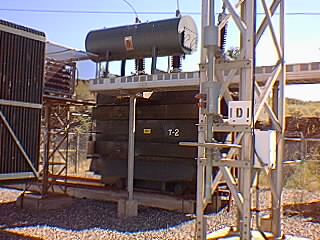

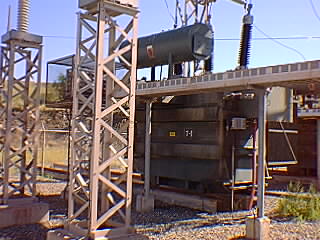

| Details: | 2 Ferranti Packard transformers, 3500 mva power circuit breaker, HV structure |
|---|
| Location: | Main Substation |
|---|
| Nameplate details: | 3 Phase 60 Hz 3, Phase 60 Hz, 138000 4160Y/2400 |
|---|
| Nameplate details: | Impedance H-X 15.84 %, H-Y 11.40% second unit H-X 15.68%, H-Y 11.41% " |
|---|
| Oil Filled: | Yes |
|---|
| Phase: | 3 |
|---|
| Primary Volts: | 138 Kv |
|---|
| Qty Available: | 1 complete substation. |
|---|
| S/N: | I-4063 and I-4064 |
|---|
| Secondary Volts: | 4160 V |
|---|
| Special Notes: | PCB Analysis Reports Available |
|---|
| Tranformer nameplate Details: | 12/16 MVA, H+Y Windings, 5/6.67 MVA, X Windings, 65 deg C rise, Type Onan/Onaf |
|---|
| Weights Each unit: | Copper Core and coils 29,500 lbs/ Tank and fittings 24,300 lbs/ Oil 2820 Imp. Gal 24,200 lbs/ Total Weight |
|---|
